K-Series Rocker Arm Removal & Install Kit

Product Details

Rocker Arm Holder Kit – Honda K20/K24
Purpose-built holders to keep the rocker arm bridge assembled during head work, camshaft service, or valve-train inspection.

• Compatibility: K20 and K24 engines; works with 1-, 2-, and 3-lobe rocker arms

• Design: Grooves interface with the bridge pieces to secure the assembly as a single unit; orientation arrows must face the camshaft gears

• Magnetic assist: Integrated magnets hold rocker arms up once seated

What’s Included (8 pcs):

• 1× Cylinder #1 intake holder (unique profile)

• 1× Cylinder #1 exhaust holder (unique profile)

• 6× universal holders for any remaining cylinders

How to Use:

1. Place the appropriate holder over each set of rocker arms and press snugly into the rocker bridge. Note: Arrows face camshaft sprockets.

2. Lift the rocker set to the tool—the magnets will retain the arms in position.

3. Proceed with removal of the rocker assembly.

4. Store the rocker bridge with the tools still holding the rocker arms in place to keep everything aligned and secure.

5. When reinstalling, the holders allow the rocker bridge to be positioned quickly and accurately without the risk of rockers falling out of place.

Notes:

• Extensively tested across multiple K-series engines for fit and reliability.

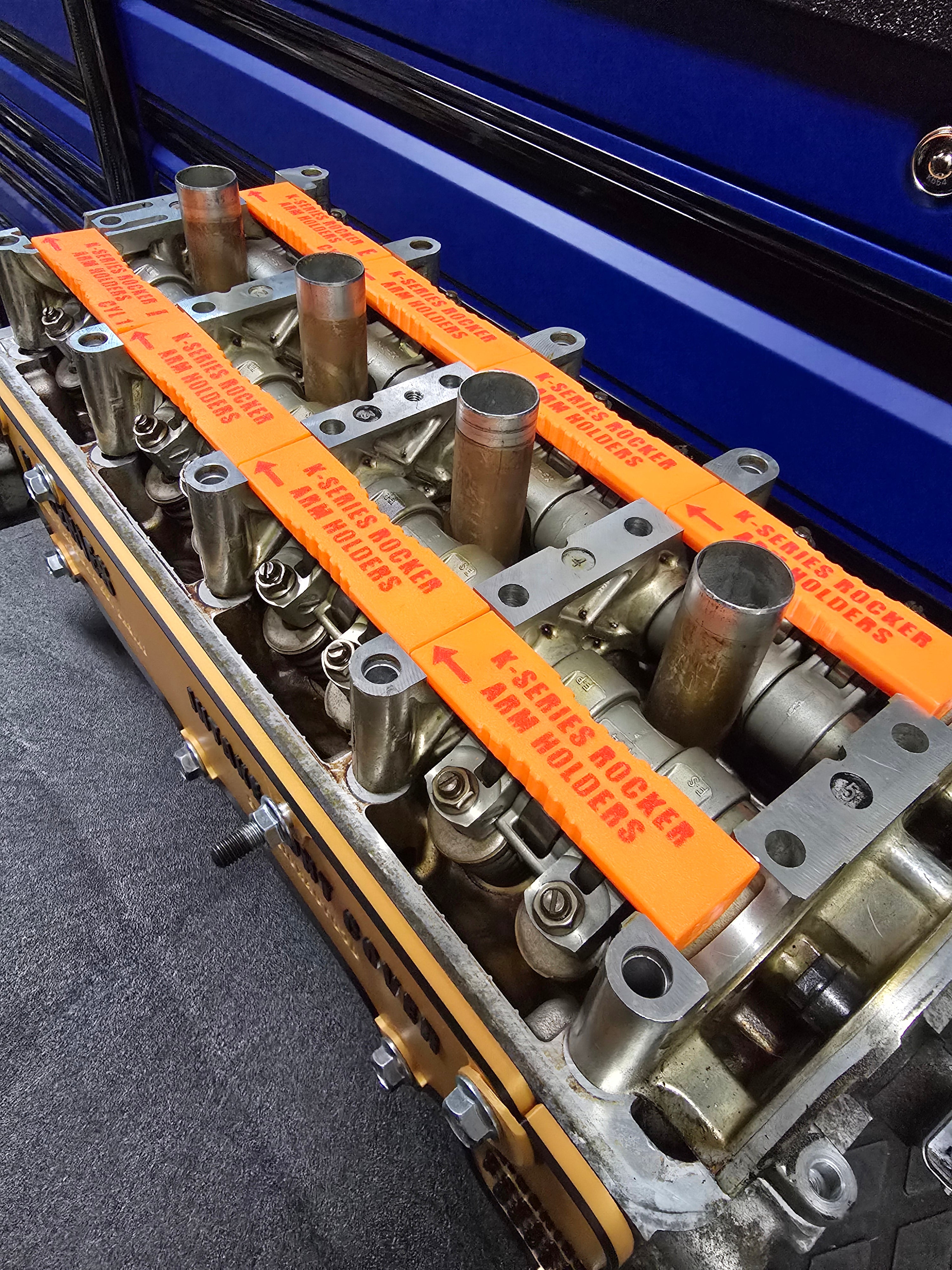

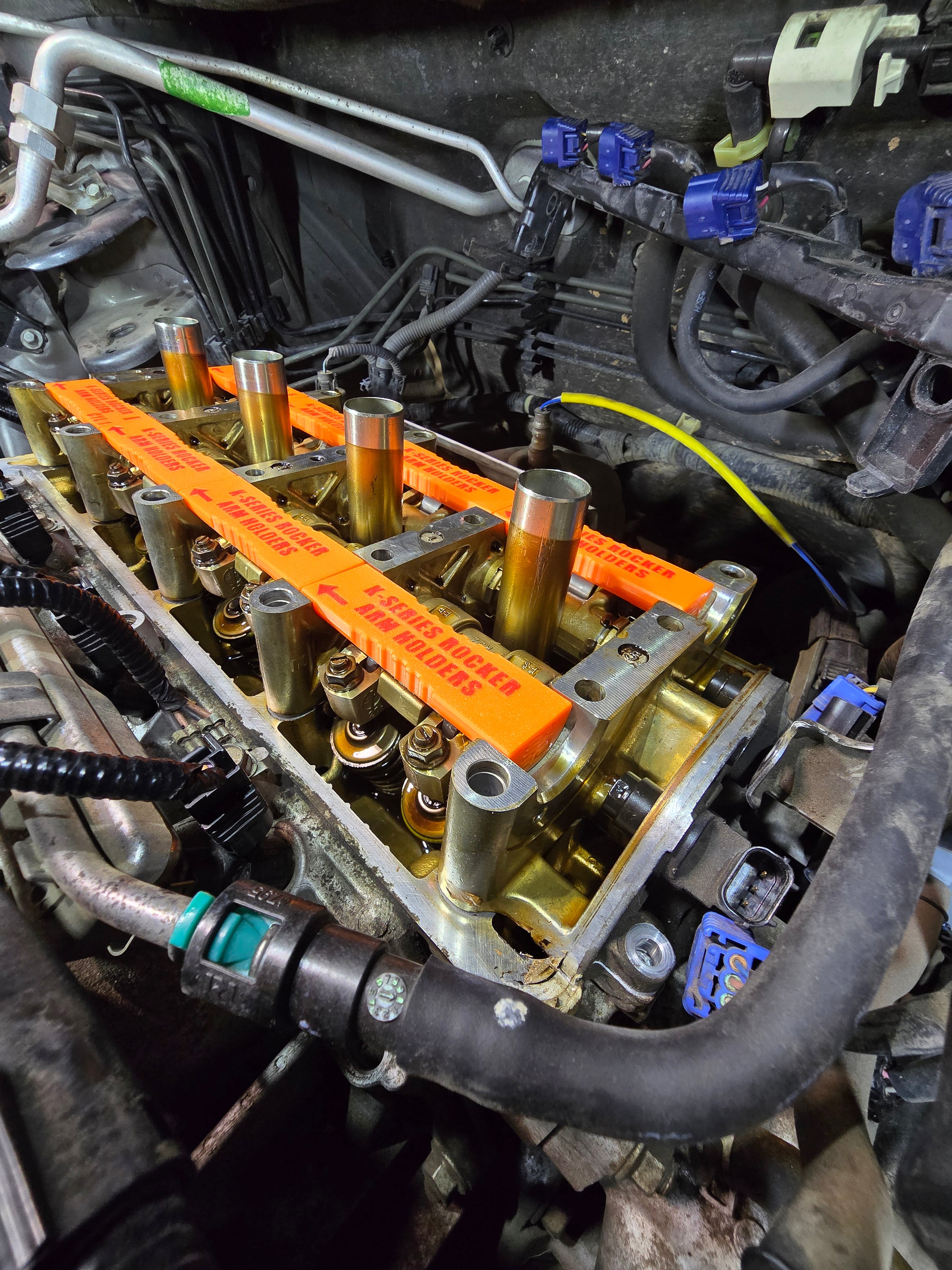

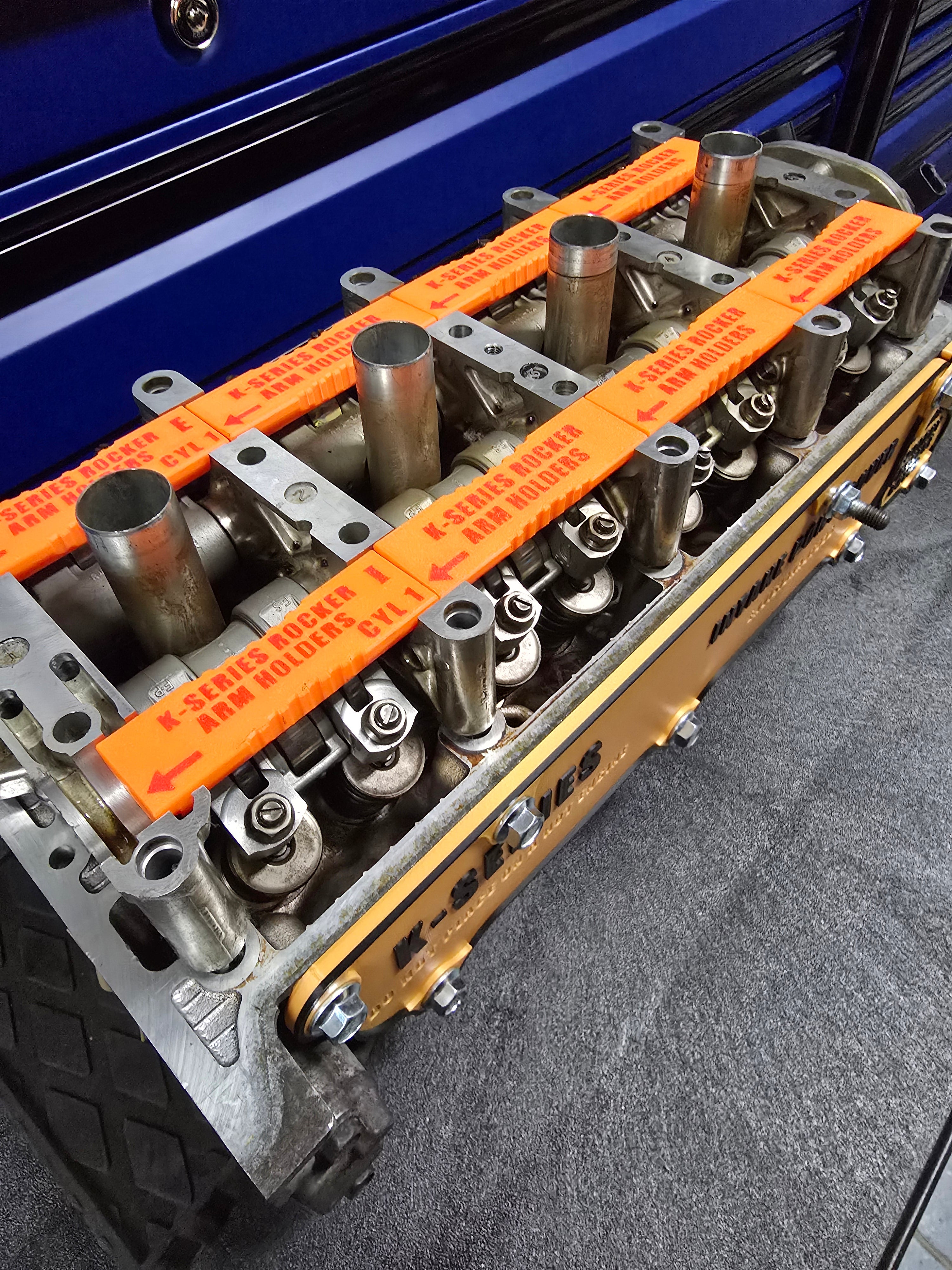

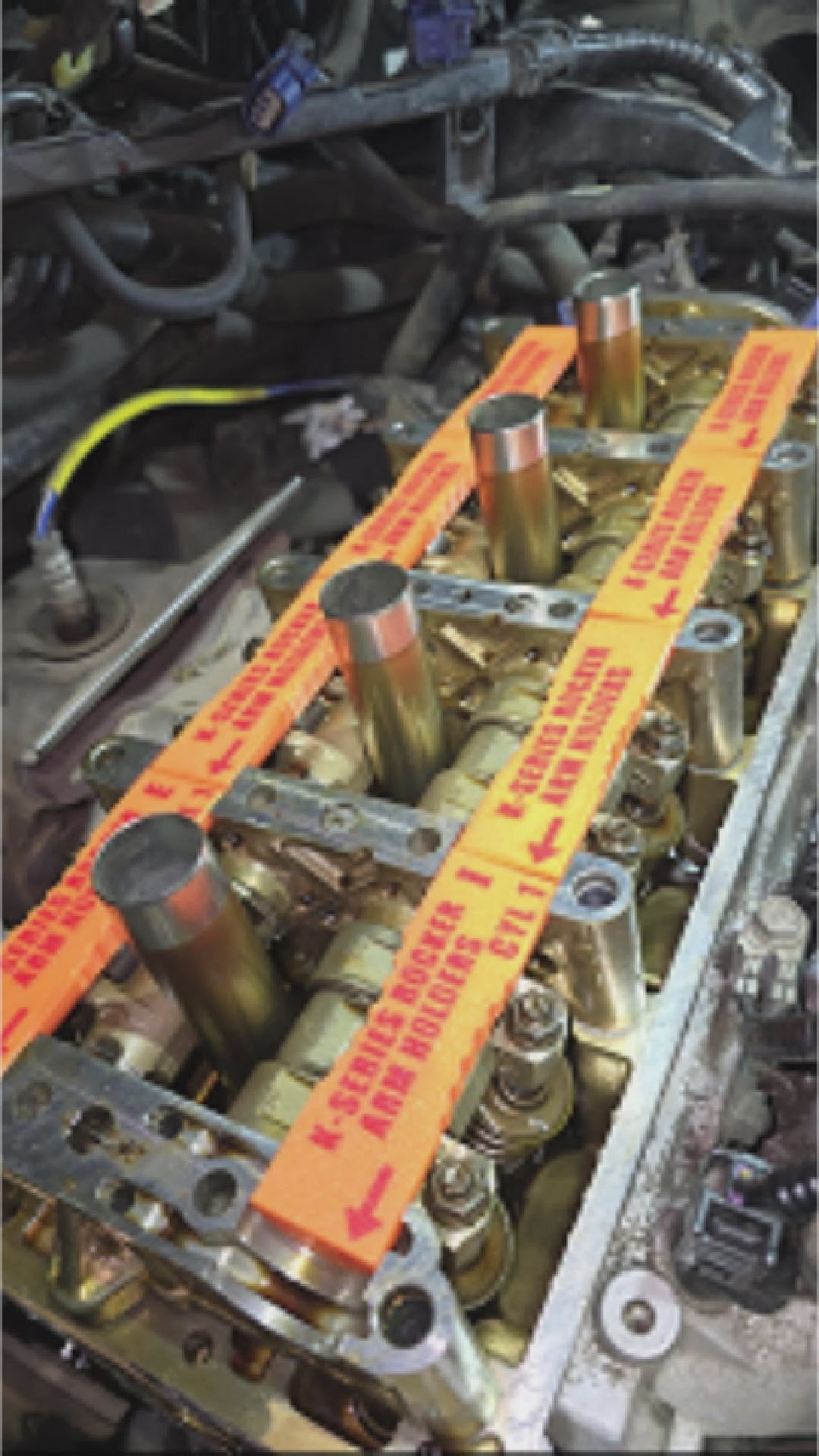

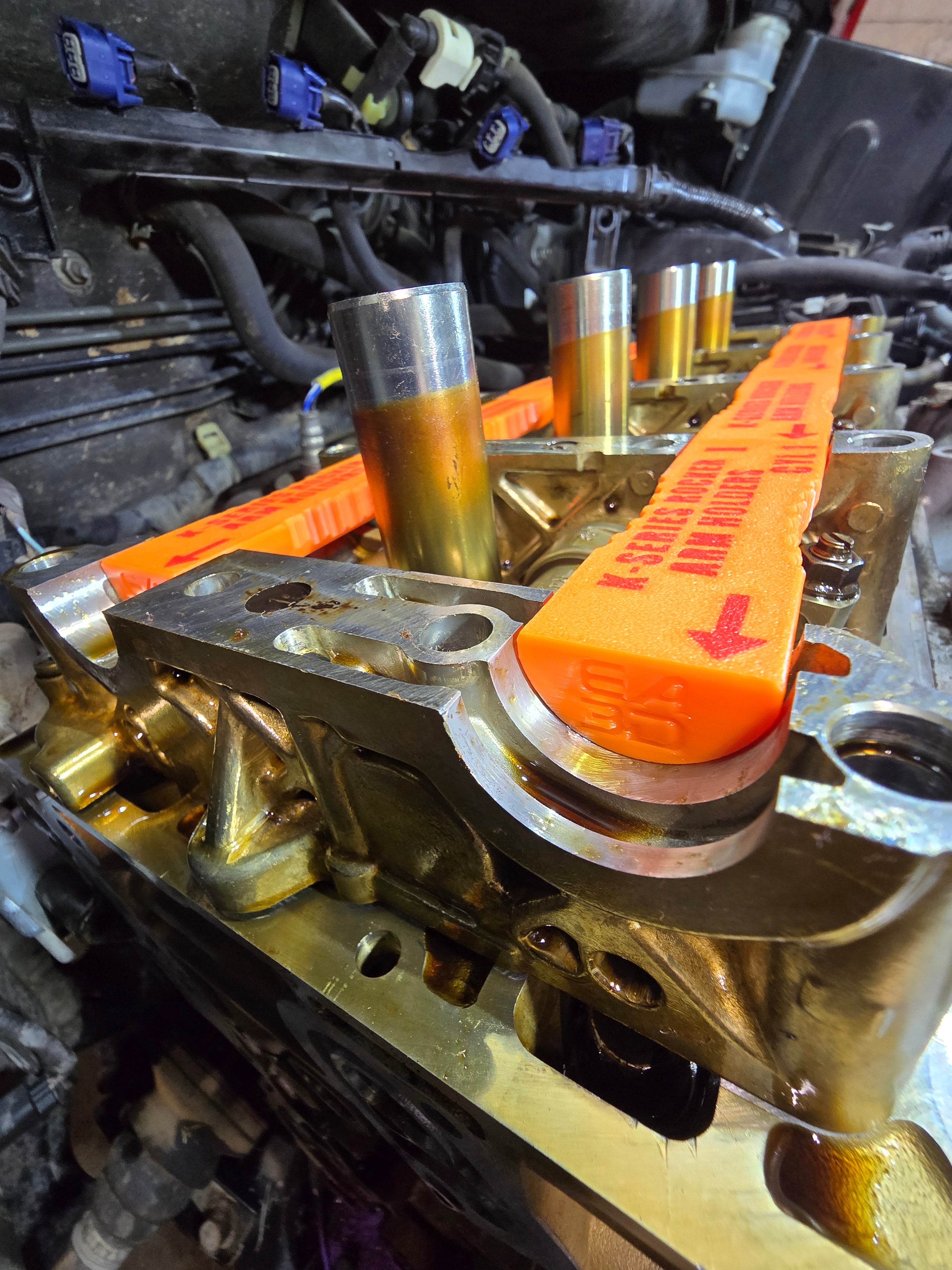

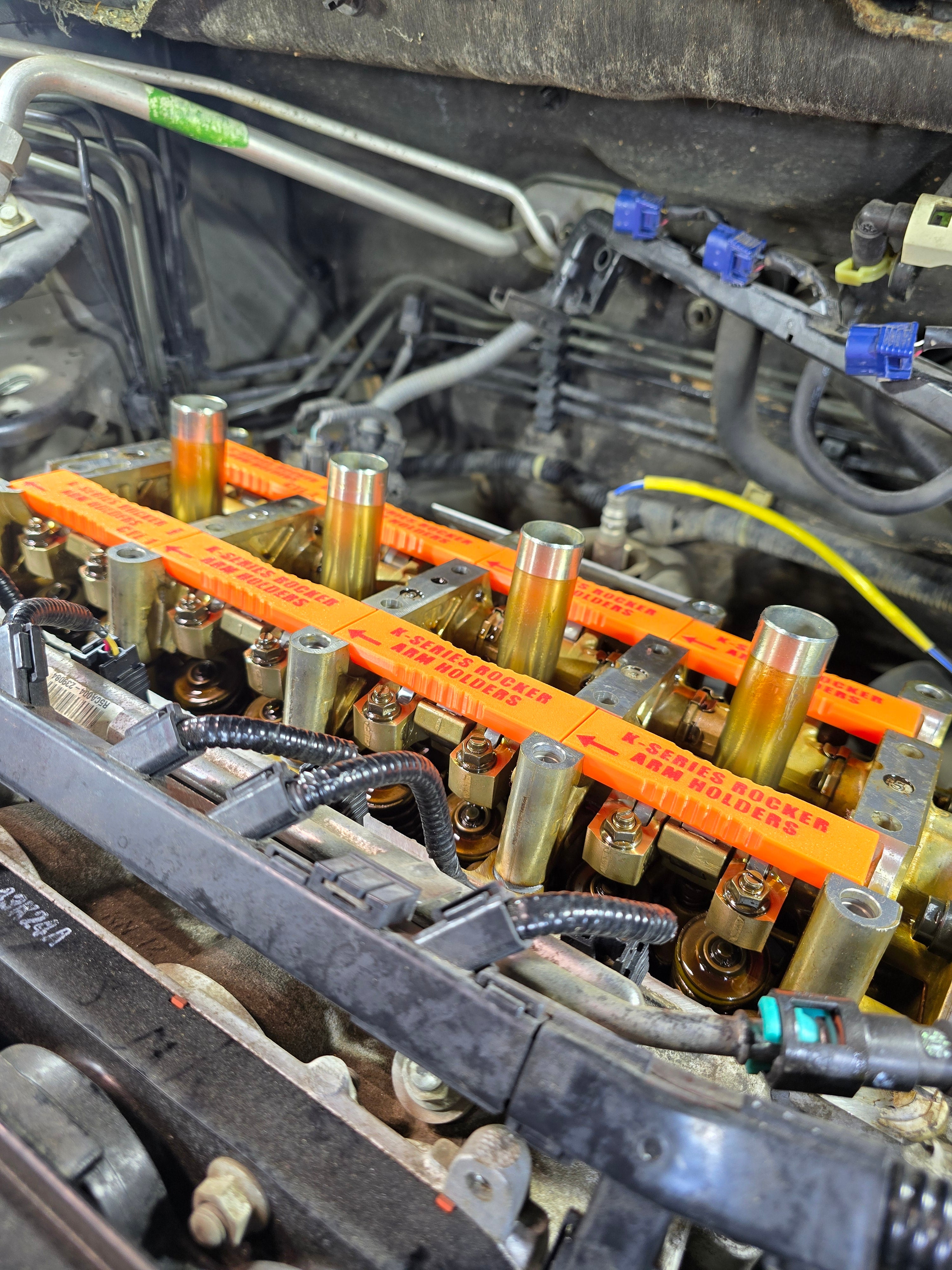

• See listing photos/video for installation orientation and workflow.

If you need the rocker holders for the older V6 rocker bridge, see the link below.

V6 Rocker Arm Holders
